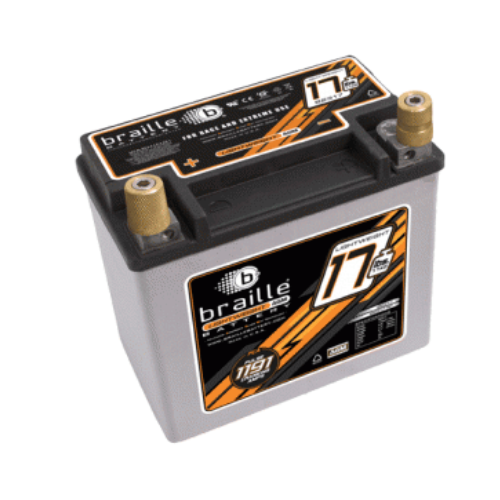

Braille Battery AGM B2317

At under 17 pounds, the B2317 is the left positive terminal designed to be a dual battery twin with the B2317R (right side positive) option. The dimensions are designed to run 2 batteries in the space of just 1 normal battery. This allows more reliability or 24 volt performance. (Note: while high in cranking amps, make sure battery has enough capacity for the vehicle intended to be used in)

Physical Specifications

• Weight: 17lbs / 7.7kg

• Length: 6.8" / 173mm

• Width: 4" / 102mm

• Height: 6.1" / 155mm

• Polarity: Left Side Positive

  Performance
• Voltage: 12

• Full Charge Voltage: 13.2

• Pulse Cranking Amps (PCA): 1191

• Amp Hour (AH): 23

• Reserve Capacity (RC): 45 mins

• Life Cycle @ 10% DOD: 3100
