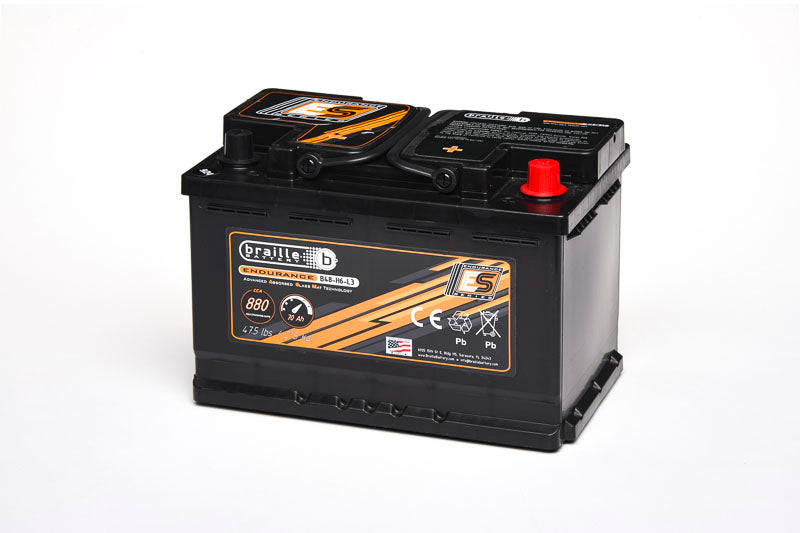

Braille Endurance AGM batteries offer a longer battery life and give you 10X Vibration Resistance, 2X Cycle Life and 2X Lifespan over traditional lead-acid batteries. They are a direct, drop-in replacement for most factory installed flooded lead-acid batteries.
Designed for a wide range of demanding, performance applications, these batteries are reliable, long-lasting, and engineered for high shock and vibration applications.
BENEFITS:
- Made in the USA
- 3-year full warranty when used in engine start applications
- Non-spillable and maintenance-free design
- Engineered for high shock and vibration applications
- Up to 2x faster recharge than traditional lead acid batteries
- Engineered to provide long-life in extreme applications
Physical Specs
| Chemistry |
Absorbed Glass Mat |
| Length (in) |
11.0″ |
| Width (in) |
6.88″ |
| Height (in) |
7.5″ |
| Weight (lbs) |
47.5 lbs |
| Polarity |
Right + |
Technical Specs
| 5S PCA |
1530 |
| Voltage |
12 |
| Capacity (Ah) |
70.0 |
| Capacity (Wh) |
880 |
| Reserve Capacity (RC) |
120 min |
| Operating Temperature Range |
-40°F / -40°C to 140°F / +60°C |
| Optimum Storage Temperature |
68°F / +20°C |
Charging Specs
| Alternator |
13.65 – 15.0 Volts |
| Boost Charger (Automatic Only) |
13.8-15.0 V 10A max, 6 hours max |
| Float Charger (Off-Season Storage) |
13.2 – 13.8 Volts 1A max |
