VBOX Video HD1

VBOX Video HD1 is a compact, rugged, single-camera video data logging system featuring 25 Hz GNSS data logging and a real-time graphical overlay. Designed for the club-level and prosumer motorsport markets, VBOX Video HD1 records synchronised GNSS, CAN, and video data in stunning 1080p high definition. H.265 compression ensures excellent video quality with efficient storage use.

The HDMI output allows you to stream real-time video and audio to a compatible HDMI monitor, recorder, or streaming device such as LiveUSolo. This is ideal for live coverage of motorsport events for TV or social media and provides race teams with the ability to give instant driver feedback.

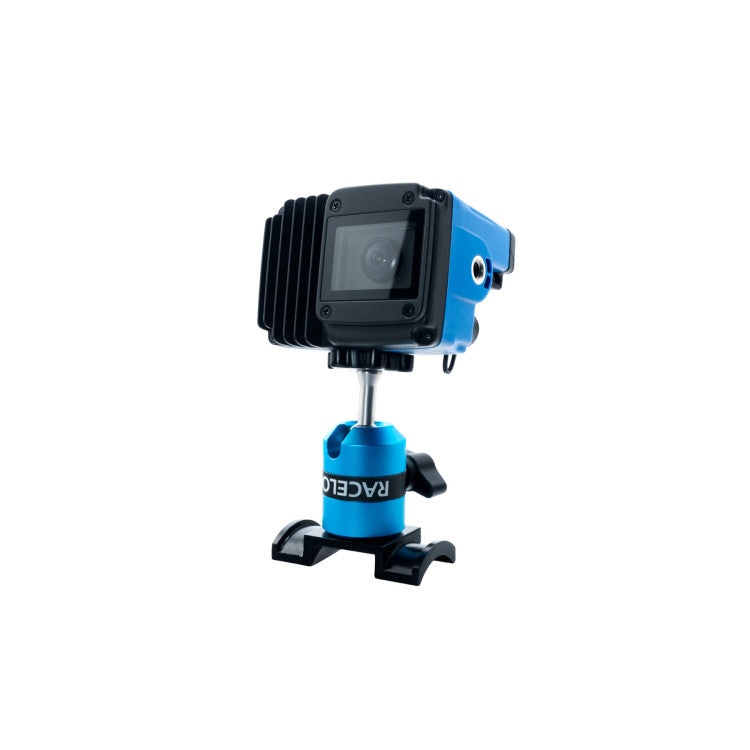

The Racelogic VBOX Video app for Android and iOS devices connects via the VBOX Video’s inbuilt Wi-Fi to allow fine-tuning of camera orientation, with real-time camera output being displayed on the mobile device’s screen.

Graphics are overlaid in real-time and high definition. This gives the user great scope for fantastic dashboard and gauge layouts. The graphics are fully customisable, and several default scenes are available.

By default, the system will start and stop logging according to GPS speed. The addition of a video pre-buffer allows every moment of track action – including race starts – to be captured automatically.

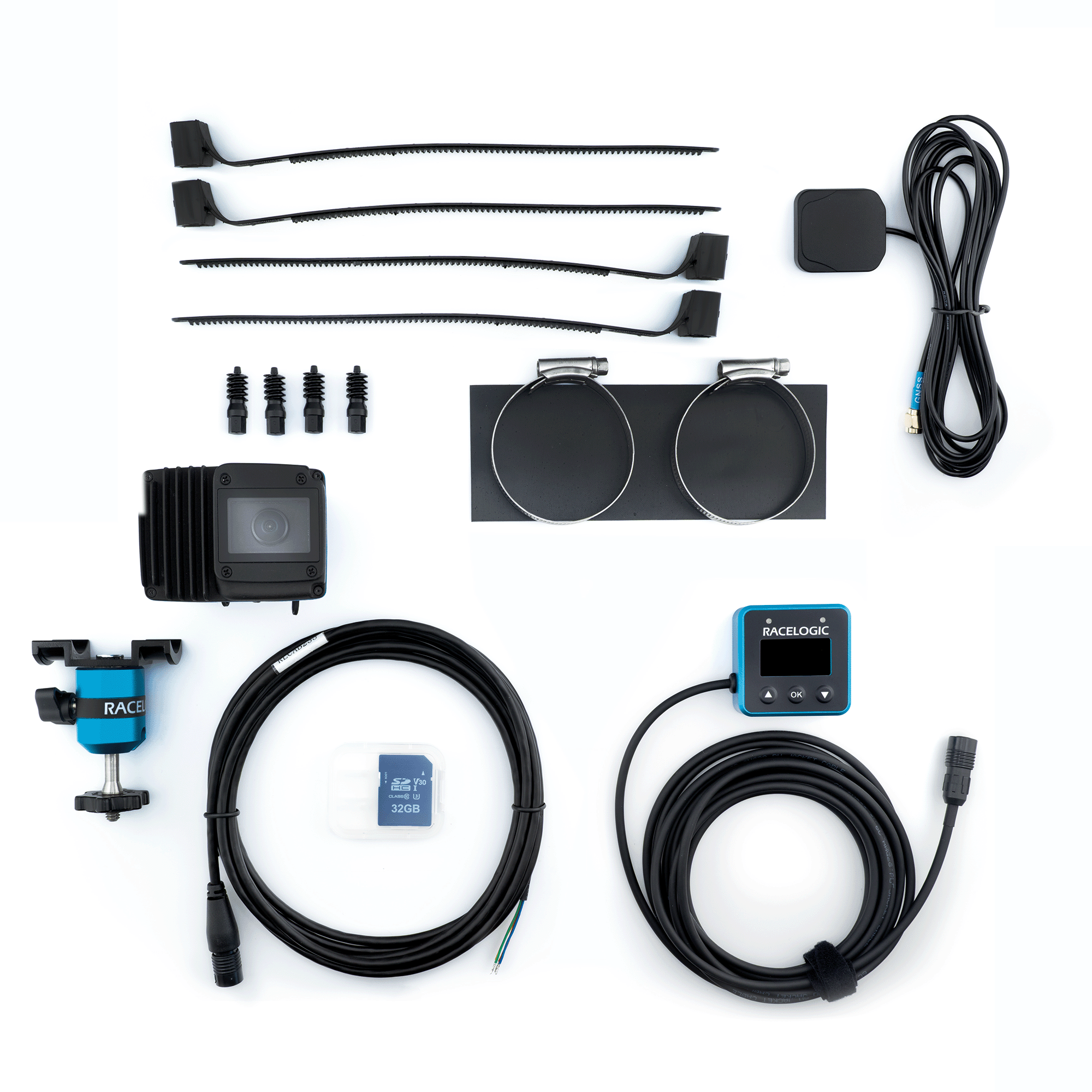

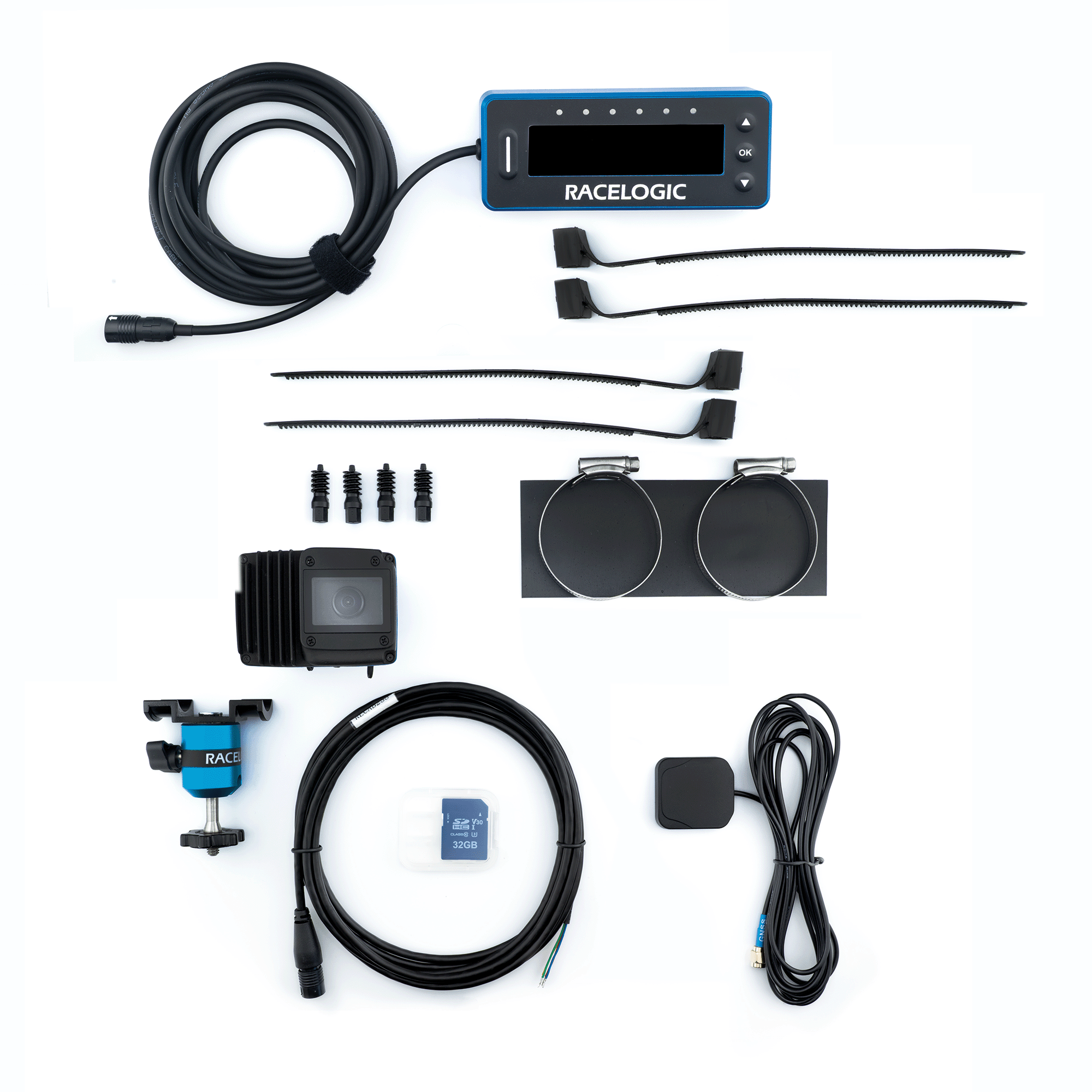

VBOX Video HD1 is compatible with the Racelogic OLED display, and Racelogic modules such as the Micro Input Module and Mini Input Module. VBOX Video HD1 supports CAN and CAN FD input via VCI (Vehicle Communication Interface).

• Single Camera, 1080p 30 fps video recording
• H.265 (HEVC) compression with dynamic bit rate
• 25 Hz GNSS data logging (multi-constellation)
• Real-time, high-definition graphic overlay
• Up to 80 CAN channel inputs (2x CAN FD buses)
• Predictive Lap Timing (with OLED display)
• Track database with auto track map
• 5 GHz Wi-Fi for camera preview
• Bluetooth (reserved for future updates)
• Internal and external microphone support
• Video pre-buffer (up to 30 seconds)
• Narrow (66°), Normal (92°), and Wide (132°) field of view modes
• HDMI 1.3 output
• Accelerometer for auto screen orientation
• FAT32 and exFAT SD card support
